Most first-time planer buyers start with a budget they set out of sight, then realize the machine everyone recommends sits above it. That gap is exactly where the sub-500 tier lives, and it is a better tier than most roundups admit. After logging spec sheets and owner reports across eight benchtop models, these are the machines that hold up to real rough-sawn lumber without turning a hobby into a repair project.
A benchtop thickness planer is a portable milling machine that shaves wood to a uniform, parallel thickness by pulling a board between rotating knives and a flat reference bed. Inside that price tier you get a 15 amp motor, a 12.25 to 13 inch capacity, and a cutterhead that can be straight knife or spiral. You give up the four-post cast-iron carriage and heavy chip conveyor of a shop floor planer, not the ability to make boards flat and consistent.
That definition matters more than any single feature. A board that is 15/16 inch at one end and 3/4 at the other cannot glue up, cannot register in a joiner, and cannot take a straight sanding pass. A thickness planer fixes all three in minutes, which is why it is the first machine most home shops add after a table saw. This guide ranks the best thickness planers under 500 by cutterhead type, hardwood capability, dust handling, and how much snipe control the machine gives you before you start adjusting anything.
Table of Contents
What a Thickness Planer Under $500 Can and Cannot Do
It can plane boards up to about 13 inches wide and 6 inches thick, remove roughly 1/8 inch of material per pass, and hold tolerances tight enough that 100-grit sanding is often skipped. Most models here run a 15 amp corded motor at 8,000 to 23,500 rpm, which is plenty for poplar, pine, cedar, ash, and moderate work in maple, walnut, and red oak.
What you cannot get in this tier is a full cast-iron four-post carriage with a powered chain lift, a chip conveyor, or factory-set snipe control on every model. Snipe is the scalloped mark at the end of each cut caused by the cutterhead dropping slightly as the board leaves the bed, and on two-blade straight-knife machines it is the single most common complaint. Spiral and helical heads fix it almost completely for a reason.
Top 3 Thickness Planers Under $500 Right Now (October 2026)
The DEWALT DW734 takes our top slot on the strength of its rating and review depth: 4.7 stars across 2,759 ratings, with a three-knife cutterhead delivering 96 cuts per inch. The WEN PL1326 edges it out on finish quality alone, because a spiral cutterhead with 26 rotatable HSS blades simply does not leave snipe marks. The CRAFTSMAN CMEW320 is the value answer, and owners report it stays accurate over roughly 1,200 board feet.
DEWALT DW734 12-1/2 in…
- 15 amp 20000 rpm motor
- Three-knife head
- 96 cuts per inch|Four-column carriage lock cuts snipe|33-1/2 inch table support
CRAFTSMAN CMEW320 12.25 in…
- 15 amp
- 16000 cuts per minute|Poly-V cutterhead drive|Reversible high carbon steel knives|Quick setup
- stable base
WEN PL1326 13 in Spiral Planer
- 26 rotatable HSS spiral blades|Cast iron base|13 in wide
- 6 in thick capacity
- 10000 rpm at 26 fpm feed
Every Pick at a Glance in 2026
All eight machines sit inside the sub-500 ceiling and handle at least 12.25 inches of width. The two that look identical at a glance, the VEVOR 13-inch models, differ in one important way: feed speed. The two-speed version gives you 24 fpm for roughing and 15 fpm for a finish pass, while the single-speed version has one gear and no second chance at figured grain.
| Product | Specifications | Action |
|---|---|---|
|
DEWALT DW734 12-1/2 in Benchtop Planer
|
|
Check Latest Price |
|
CRAFTSMAN CMEW320 12.25 in Planer
|
|
Check Latest Price |
|
WEN PL1326 13 in Spiral Planer
|
|
Check Latest Price |
VEVOR 13 in Two-Speed Planer
|
|
Check Latest Price |
Cutech 40600H 13 in Spiral Planer
|
|
Check Latest Price |
WOODERS 13 in 15A Planer
|
|
Check Latest Price |
Triton TPT125 12-1/2 in Planer
|
|
Check Latest Price |
VEVOR 13 in Single-Speed Planer
|
|
Check Latest Price |
1. DEWALT DW734 – Best Overall Thickness Planer Under $500
DEWALT Benchtop Planer, 15-Amp, 12-1/2-Inch, 3-Knife Cutter, 20,000 RPM, Corded (DW734)
15 amp at 20,000 rpm
12.5 in width
Three-knife head at 96 cuts per inch
Four-column carriage lock
Pros
- 15 amp 20000 rpm motor takes deep cuts in hardwood
- Three-knife head gives the finest finish of any straight-knife machine
- Four-column carriage lock reduces snipe
- 33-1/2 inch of infeed and outfeed support
- Reversible disposable knives change fast
Cons
- Bulky at 36.29 kg and awkward to move alone
- Periodic knife sharpening required
- Dust hood only with no integrated collector
The DW734 is the machine we keep coming back to after reading owner reports on every option in this list. With 83 percent of its 2,759 ratings at five stars and a 4.7 average, it has the deepest owner history of any machine in this lineup. That matters when you are buying a tool that will sit in a garage for a decade.
Under the covers it is a 15 amp, 20,000 rpm motor driving a three-knife cutterhead at 10,000 rpm, which works out to 96 cuts per inch. Owners consistently describe the finish as close to sanding with 100 grit, and the three-knife arrangement means each knife does less work than a two-knife head, which is why the reversible disposable blades deliver 30 percent more knife life per set.
The four-column carriage lock is the feature that separates it from cheaper machines. Instead of the bed carriage floating on two posts, the head rides a four-column rack that resists the vertical deflection causing snipe. Buyers who had previously owned budget machines single this out as the reason the DW734 needs less infeed and outfeed adjustment before it runs clean.
Table support is the other quiet win. The extra-long infeed and outfeed tables give you 33-1/2 inches of material support, so a long board or a bowed rough-sawn stick stays flat through the cut instead of drifting. The turret depth stop and the extra-large thickness scale mean you can return to a set depth quickly when you are dimensioning a batch of boards to the same thickness.
What you should know before you buy the DW734
It weighs 36.29 kg, which is real mass for a benchtop machine and the reason it does not wander across the bench mid-cut. Plan on a stand that can carry it, and on moving it with two people rather than hoisting it onto the bench alone.
Depth of cut is listed at 0.13 inches, but on rough hardwood the sensible ceiling is much lower. Most owners take 1/32 inch on oak and walnut and reserve the deeper setting for softwood, because a deep pass through a dense board is what stalls a 15 amp motor and leaves a fuzzy surface.
Who the DW734 suits and who should skip it
Buy it if you are flattening real hardwood regularly, working with warped or twisted rough-sawn lumber, or want the option of three passes where two will not do. If your work is trim, small parts, and the occasional 1/4 inch skim pass on construction lumber, you are paying for capability you will not use.
Skip it if you need quiet operation or a dust system included. At 20,000 rpm with three knives cutting air, it is loud, and the machine includes a dust hood rather than a port sized for a 4-inch hose. Budget for a dedicated collector and an earplug habit.
2. CRAFTSMAN CMEW320 – Best Value Thickness Planer Under 500
CRAFTSMAN Planer, 15 Amp, For Benchtops, Two Knife Solid Steel Cutter Head (CMEW320)
15 amp, 8000 rpm head
12.25 in width
16,000 cuts per minute
27.71 kg
Pros
- Keeps cutting accurately over roughly 1200 board feet
- Stable base with four mounting holes for bolting down
- Accurate depth measurement and a working shavings collector
- Fast setup
- running in under 15 minutes
- Heavy enough to stay put yet movable
Cons
- Two-blade head leaves residual snipe at board ends
- Loud
- and louder with a shop vac attached
- Power cord exits at the front corner of the unit
The CMEW320 answers a common question on woodworking forums, which is whether the entry tier is a compromise or a real machine. Owners report roughly 1,200 board feet of accurate cutting, smooth finish for a two-knife head, and a base that stays where you put it. At 4.6 stars across 1,505 ratings, it has the second-deepest owner record in this lineup.
The drive train is a solid steel two-knife cutterhead on ball bearings running at 8,000 rpm, which equals 16,000 cuts per minute, driven by a Poly-V belt for maximum stock removal. Knives are high carbon steel, double edged, and reversible, so you flip them when they dull instead of discarding them, and that stretches blade life on hardwood considerably compared with a fixed-edge design.
Workshop owners like the four mounting holes in the base. Bolting the planer to a bench kills vibration and the small thickness variations that come from a machine walking during a cut. There is also a vacuum port for dust collection, and the collector is reported to actually catch chips rather than merely looking connected.
Setup speed is a genuine advantage. Owners report being running within 15 minutes of unboxing, which matters for a shop that does not want a calibration ritual before the first cut. The depth scale is reported as accurate, so repeat thicknessing is straightforward once you have a reference measurement.
What to expect from a two-knife head
Snipe is the trade-off, and it is not a defect so much as physics. Two knives mean two cutting events per revolution, and at 8,000 rpm that is fewer, more aggressive slices than a three-knife head. The fix is adjustment, not replacement: the infeed and outfeed tables are tuned with the same bolts across this class of machine until the dips disappear.
Rapid knife wear in hardwood is the other honest limitation. High carbon reversible blades sharpen well and hold an edge for a while, but oak and walnut will take them down faster than pine. Budget time for sharpening rather than treating it as a set-and-forget cutterhead.
Who should buy the CMEW320
Buy it if this is your first planer, if your material is mostly poplar, pine, cedar, and construction lumber, and if you would rather spend the difference on a dust collector and a sharpening system. It is the rare budget tool that does not feel like a placeholder in the shop.
Skip it if surface finish on figured hardwood is the whole point of the machine, because the two-blade head will leave a planing sequence you can see in finished work. In that case the spiral-headed options are cheaper per unit of satisfaction.

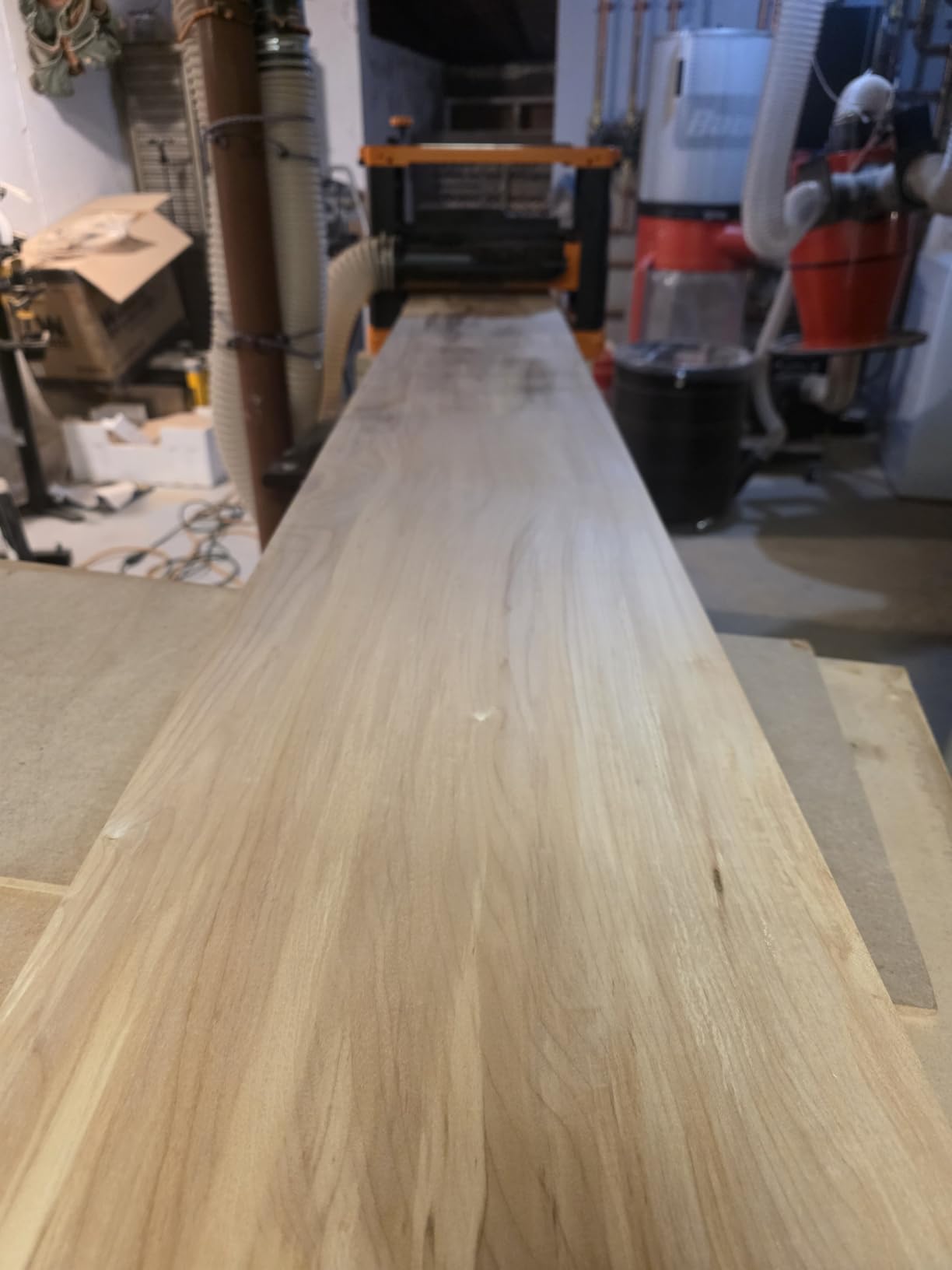

3. WEN PL1326 – Best Spiral Cutterhead Under 500
WEN PL1326 15-Amp 13-Inch Spiral Benchtop Thickness Planer
26 rotatable HSS spiral blades
13 in by 6 in capacity
10,000 rpm at 26 fpm
Cast iron base
Pros
- Spiral head leaves little to no snipe after table adjustment
- 26 rotatable blades extend cutter life
- Quieter than the straight-knife machines it is compared against
- Table setup takes about 30 minutes
- Cast iron base adds real stability
- Handles rough lumber into usable material
Cons
- Depth indicator is a small round pin instead of a full scale
- Brush motor noise still loud enough to need hearing protection
- Dust port design is awkward and misses chips
- 13 inch width leaves no margin on wider material
The PL1326 is the machine that answers the DEWALT budget question, and it comes up repeatedly in woodworking communities as the value pick for a simple reason. It puts a spiral cutterhead with 26 staggered, rotatable HSS blades into the sub-500 tier, and spiral heads are what separate a clean surface from a planed-looking surface. It holds a 4.7 average with 84 percent of its 736 ratings at five stars.
Because each blade is staggered across the cutterhead rather than sitting beside its neighbor, the cut is a shear rather than a chop. That is why snipe is largely absent here, and why experienced owners report matching or beating machines costing considerably more on finish quality. The blades also rotate to a fresh edge, so you can index all 26 before sharpening.
Capacity is a step up from the 12.25 inch and 12.5 inch machines: 13 inches wide by 6 inches thick. The 15 amp motor runs at 10,000 rpm with a 26 feet per minute feed rate, a deliberately moderate combination that gives the spiral knives time to shear cleanly. It is a single-speed machine, so figured grain gets the same feed rate as rough lumber.
The cast iron base is unusual at this level and worth noting. It weighs more than lighter stamped machines, which helps vibration control, and users report the machine stays where it is placed. An onboard material removal gauge shows how deep each pass is cutting, and the included depth stop lets you return to a set thickness without re-dialing the scale.
Setting up a spiral planer for the first time
The infeed and outfeed tables need about 30 minutes of careful work, and this is the step that determines whether you fight snipe forever. Set both tables as close to flush with the bed as the adjustment allows, then run a sacrificial board of cheap pine through several times and check the ends for scallops.
Finishing hardwood is the reason to buy this machine, so plan on a dust solution rather than relying on the port. Owners describe the port design as awkward and note it does not capture all chips, which means a shop vacuum on the rear corner catches what the machine misses.
Who should buy the PL1326
Buy it if finish quality on hardwood matters, if you make cutting boards, furniture, or boxes where a planing sequence would show, and if you would rather tune tables once than chase snipe on every board. It is also the pick for anyone who plans resawing or working on figured stock.
Skip it if you need a quiet machine or a second feed speed. The brush motor is still loud, and with only one gear you cannot slow the feed for curly maple the way the two-speed VEVOR can.

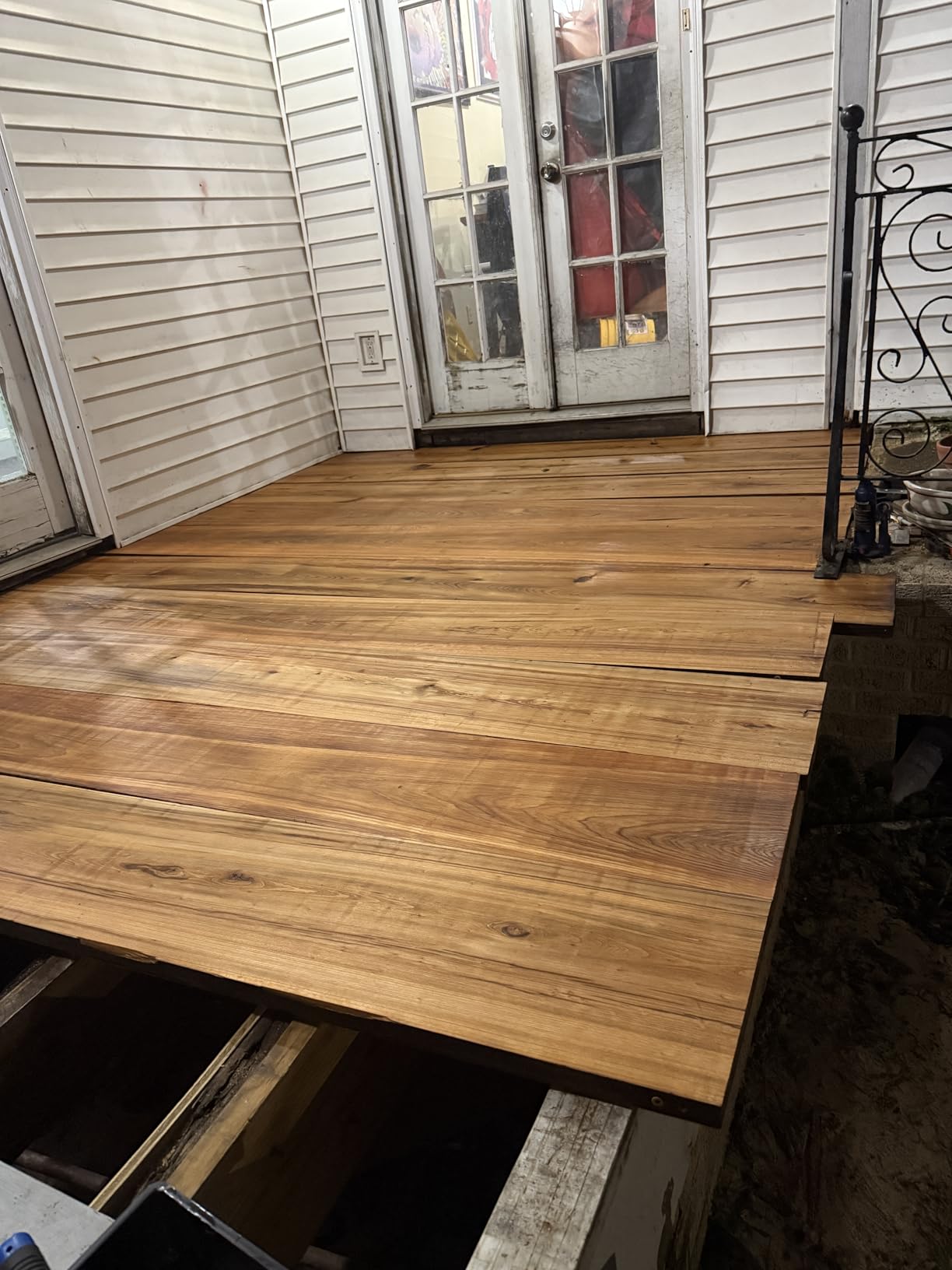

4. VEVOR 13-Inch Two-Speed Planer – Best Two-Speed Feed Under 500
VEVOR Power Benchtop Planer Three-Blade Two Speed 13″ Thickness Planer
13 in width, 6 in height
24 and 15 fpm feed speeds
23,500 rpm, 2000W motor
HRC55-60 three-knife head
Pros
- Runs quieter than machines costing far more
- Two feed speeds allow fast roughing then a slow finish pass
- Three quick-change knives hold an edge and cut accurately
- Metal cone gears in the sync shaft beat plastic
- Cleans rough red oak and pecan in one pass
- On-machine tool storage
Cons
- Factory knives reported dull on arrival
- Included wrench is flimsy and slips
- Rear table extension will not lock upright
- Vacuum hood clogs and can dimple the workpiece
- Not a precision instrument
This is the only machine in the lineup with a two-speed gearbox, and that single feature changes how you work. The 24 fpm setting roughs out thick rough-sawn boards quickly, and the 15 fpm setting gives you the slow finish pass that single-speed machines cannot. On figured stock that difference is the whole game. The 2000W motor runs at 23,500 rpm with a built-in 20A over-current protector.
The cutterhead is a quick-change solid steel three-knife unit hardened to HRC55-60, which is a harder steel than most budget planers use. The bed is precision-machined cast iron with a steel plate, and the 13-inch widened worktable handles boards up to 6 inches thick with 35 inches of total length including the extensions. Owners report taking rough red oak and pecan to a smooth surface on all four faces in a single pass.
At 4.1 stars across 548 ratings, the rating trail is weaker than the DEWALT, WEN, or CRAFTSMAN, and the distribution shows it, with 9 percent one-star reviews. Owners who like it point to quiet operation relative to the price, accurate cutting once the knives are sharpened, and effective dust collection when paired with a shop vacuum.
The metal cone gears in the synchronizing shaft are worth calling out because plastic versions in this class are a known failure point. A 20A over-current protector also suggests this machine expects to be run on a 20A circuit rather than a 15A branch, which matters in older shops.
What arrives in the box that will not work well
The most repeated complaint is that the factory-installed knives arrive dull or unsharp, and several buyers installed their own set before the first cut. Treat the included blades as spares and budget for a sharpening session on day one. The included wrench is also reported as flimsy and prone to slipping on the cutter bolts.
The rear table extension will not lock in the raised position, so owners improvise with a bungee cord. That is an easy fix but an irritating one, and the vacuum hood clogs with large shavings enough that you clear it every few boards and risk dimpling the workpiece surface if you push too hard.
Who should buy this VEVOR
Buy it if you do a lot of roughing on hard, figured stock and want the option of a slow finish pass without changing machines. The two-speed gearbox is a genuine feature no other sub-500 pick here offers, and the quiet running is a real advantage in a shared space.
Skip it if you need a machine that arrives ready to cut with no blade work, or if a table that will not lock sounds like a compromise you will resent. The outboard trays are also hard to level, so it is not the choice if you want a pure flat reference for face-jointing.
5. Cutech 40600H – Carbide Spiral Planer Under 500
Cutech 40600H 13-Inch Spiral Cutterhead Benchtop Planer with 26 Tungsten Carbide Inserts, Single Speed Feed Rate, Snipe Minimizer, and Board Return Rollers (13-Inch Single Speed)
13 in width, 0.13 in cut depth
10,000 rpm cutterhead
26 two-sided carbide inserts
Single speed feed
Pros
- Spiral head is quieter than any straight-knife planer here
- Low amp draw with a smooth finish from carbide inserts
- Four lead screw snipe minimizer needs no separate lock
- Depth stop and indicator simplify repeat thicknessing
Cons
- Single speed with no low-feed finish pass
- Small review base limits durability evidence
- Chip blow action needs frequent clearing
The Cutech 40600H is the design-forward option, and its two selling points are carbide inserts and a snipe minimizer. The spiral cutterhead carries 26 two-sided tungsten carbide inserts in six staggered rows, and unlike the HSS spirals elsewhere in this list, carbide does not need sharpening. That changes the long-term cost of ownership rather than just the day-one feel.
The inserts are two-sided with a non-cutting edge designed to prevent skewing, which matters because a skewed insert marks the board. Carbide also holds an edge through hardwood without the frequent sharpening passes an HSS spiral demands, and the low amp draw lets it slice dense material without the motor straining.
The snipe minimizer is mechanical rather than a bolt adjustment. Four lead screws and a patented coupling design hold the head at a consistent height as the board leaves the bed, which is the exact moment snipe is created. You get snipe control without finding the adjustment procedure for four corner bolts, which is the step most owners skip and then blame the machine for.

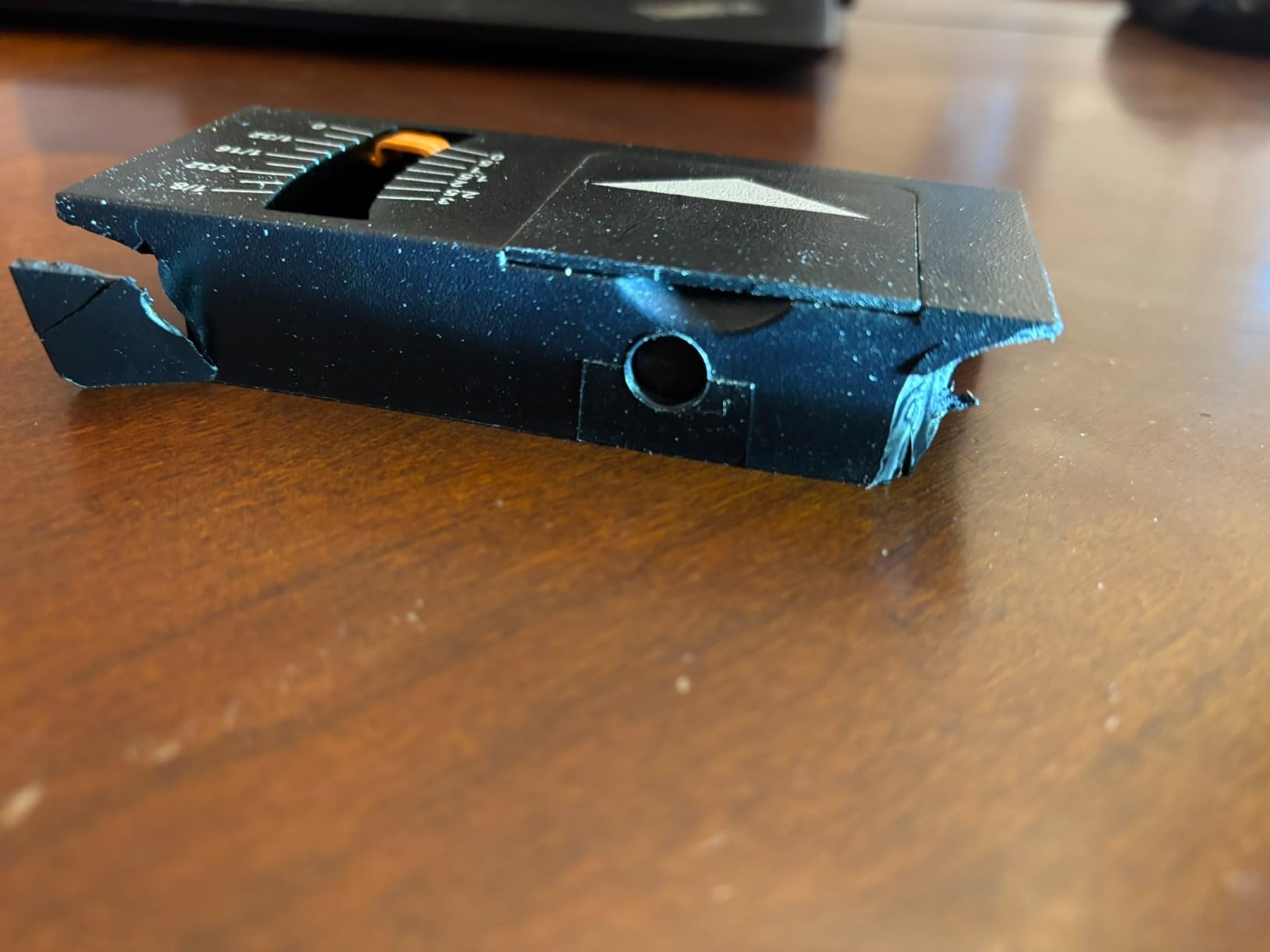

Batch work is handled by an 8-position repeat cut depth stop and a depth-of-cut scale on the front of the machine. Board return rollers let you pull stock back without scraping finished surfaces off the table, and the flip-up dust hood can be repositioned for a bench-mounted setup.
What a small review base means for you
With 41 ratings, this is the thinnest evidence base in the group, and that is a real caution. A 4.4 average is encouraging, but it does not tell you what happens at year five.
The 10 percent one-star share means you should expect some variance in assembly quality. The chip blow action requires clearing shavings more often than a fan-assisted port would, which is annoying when you are running a batch of identical parts.
Who should buy the Cutech
Buy it if noise is your main concern, if you work with people nearby, or if you plan to keep the machine for years and would rather buy carbide inserts than maintain HSS blades. The snipe minimizer alone makes it attractive for a beginner who will not tune four bolts to chase a scallop.
Skip it if you cut a lot of figured hardwood and want a slower feed for the finish pass, because it is single speed. If you like having a known repair path, an obscure brand with a thin parts supply is a harder sell than a machine from a maker you can find a manual for.
6. WOODERS PL13-15AB – Most Hardware in the Box Under 500
WOODERS 13-Inch Benchtop Thickness Planer, 15A Wood Planer with 4 HSS Blades, 2000W All Copper Motor, Overload Protection for Woodworking
2000W all-copper motor
10,000 rpm cutterhead
13 in width, 1/4 to 6.3 in range
60 lb
Pros
- Slices dense hardwood such as oak and walnut without bogging down
- Two spare HSS blades ship in a storage box
- Oversized crank and high-visibility height indicator are easy on the hands
- Iron blade shaft and rugged frame cut vibration
- Built-in overload protection guards the motor
Cons
- Straight HSS blades dull faster than carbide inserts
- Anti-snipe performance depends on careful table alignment
- Fewer reviews mean less field history than the branded units
The PL13-15AB is the pick if the accessories in the box matter to you, because it arrives with a dust collector, two spare double-edged HSS blades in a storage box, and a lifting handle. That bundle is worth more than it sounds on a first planer, because you can start cutting the day it arrives without a separate blade purchase or a shop vacuum on hand.
The motor is a 2000W all-copper design running the cutterhead at 10,000 rpm, with a heavy-duty iron blade shaft and a rugged frame meant to limit vibration on the bench. Owners report that it slices dense hardwoods like oak and walnut without bogging down, and the built-in overload protection stops the motor rather than letting it cook itself on a stalled cut.
Capacity runs 13 inches wide with a height range of about 1/4 inch to 6.3 inch, and depth of cut is set in 3 mm, roughly 1/8 inch, per setting. The oversized depth crank and the high-visibility 0 to 1/8 inch indicator are unusually thoughtful ergonomics, and older hobbyists mention the crank specifically as easier to turn than a small wheel.
Reading a 4.1 rating on a strong machine
The 4.1 average comes with a wide spread: 66 percent five-star but 10 percent one-star. That pattern usually means the machine performs as designed and a minority has setup or expectation problems. Treat the first session as a calibration session rather than a test of faith.
Straight HSS blades are the specification to think about. They will take a board down fast, but in oak and walnut they dull noticeably faster than the carbide spirals, so you will be sharpening on a schedule. Two spares in the box soften that, though they do not remove it.
Who should buy the WOODERS
Buy it if you want a complete kit on arrival, if a shop vacuum is not yet part of your setup, or if you want spare blades in the box so a damaged knife does not end your session. The 60 lb frame is stable and the copper motor is a good sign for sustained hardwood work.
Skip it if snipe control matters more than accessories, because the anti-snipe design still depends on careful infeed and outfeed alignment. And weigh the thin review count before committing, because you are buying on specification rather than on owner history.

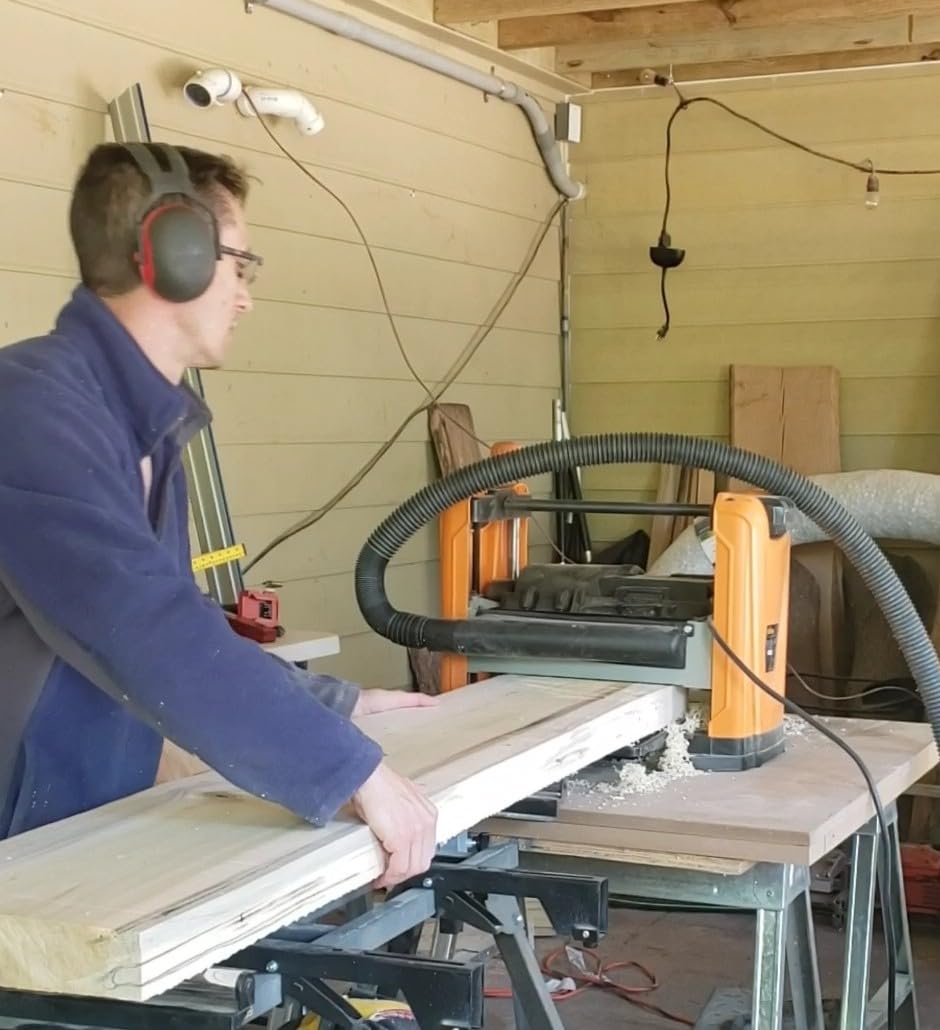

7. Triton TPT125 – Entry Point for Small-Part Work
Triton TPT125 High Performance Benchtop Planer with 12-1/2″ Cutting Width
17,500 cuts per minute
12.5 in cutting width
1/16 inch depth increments
65 lb with circuit breaker
Pros
- Lowest entry point of any machine here with real planing capability
- Accurate and easy 1/16 inch depth increments
- Blades remove and sharpen easily
- Vacuum attachment leaves little floor debris
- Dust chute mounts on either side
Cons
- Height crank is easy to bump while feeding
- Height scale is hard to read
- Vibration can shift the machine out of position
- Very loud
- Some units report inconsistent single-pass thickness
The TPT125 is the lowest-cost real planer on this list, and for casual work it does the job without ceremony. Owners doing trim, coasters, and small river-table projects report it as capable and inexpensive, with a 4.3 average and a heavy 25 percent four-star cohort. The 17,500 cuts per minute figure comes from the 17,500 rpm cutterhead on this machine.
Depth of cut sets in 1/16 inch increments, which is a genuine design choice for a beginner machine. Coarse steps are easier to read on a simple scale and less likely to produce a mistake that takes a board too far down in one pass. There is a circuit breaker for electrical safety and the dust chute mounts on either side.
Blades are easy to remove and sharpen, and one owner replaced the set once in two years. That ease is more important than it sounds, because blade maintenance is the ongoing cost of a straight-knife planer and a machine you can sharpen in ten minutes is one you will actually maintain.
Vacuum attachment works well enough that owners report very little floor debris, and the side-mountable chute means you can point the machine toward a collector regardless of how your bench is laid out. Setup is minimal, which suits a first machine.
Where this budget planer falls short
Ergonomics are the issue. The height adjustment crank is easy to bump while you are feeding a board, and the height scale is reported as poorly designed and hard to read. Combined with vibration that can move the machine out of position, you should expect to re-check depth more often than on a machine with a turret stop.
A minority of owners report inconsistent thickness across the board width on a single pass, and a few received units with a cracked switch. The 1/16 inch increment also means you cannot finish at 1/32 inch without a different setting method, which limits precision work.
Who should buy the Triton
Buy it if your work is small parts, trim, and light dimensioning, and if you want to know whether you even use a planer before spending more. With this machine, sharpening ability and a shop vacuum are the only real additional costs, and it will teach you the fundamentals of depth setting and feed control cheaply.
Skip it if you plan to flatten boards you care about. The combination of coarse depth increments, a bumpable crank, and reported cross-width inconsistency is the wrong trade for a walnut panel you intend to finish. Move up a tier instead.

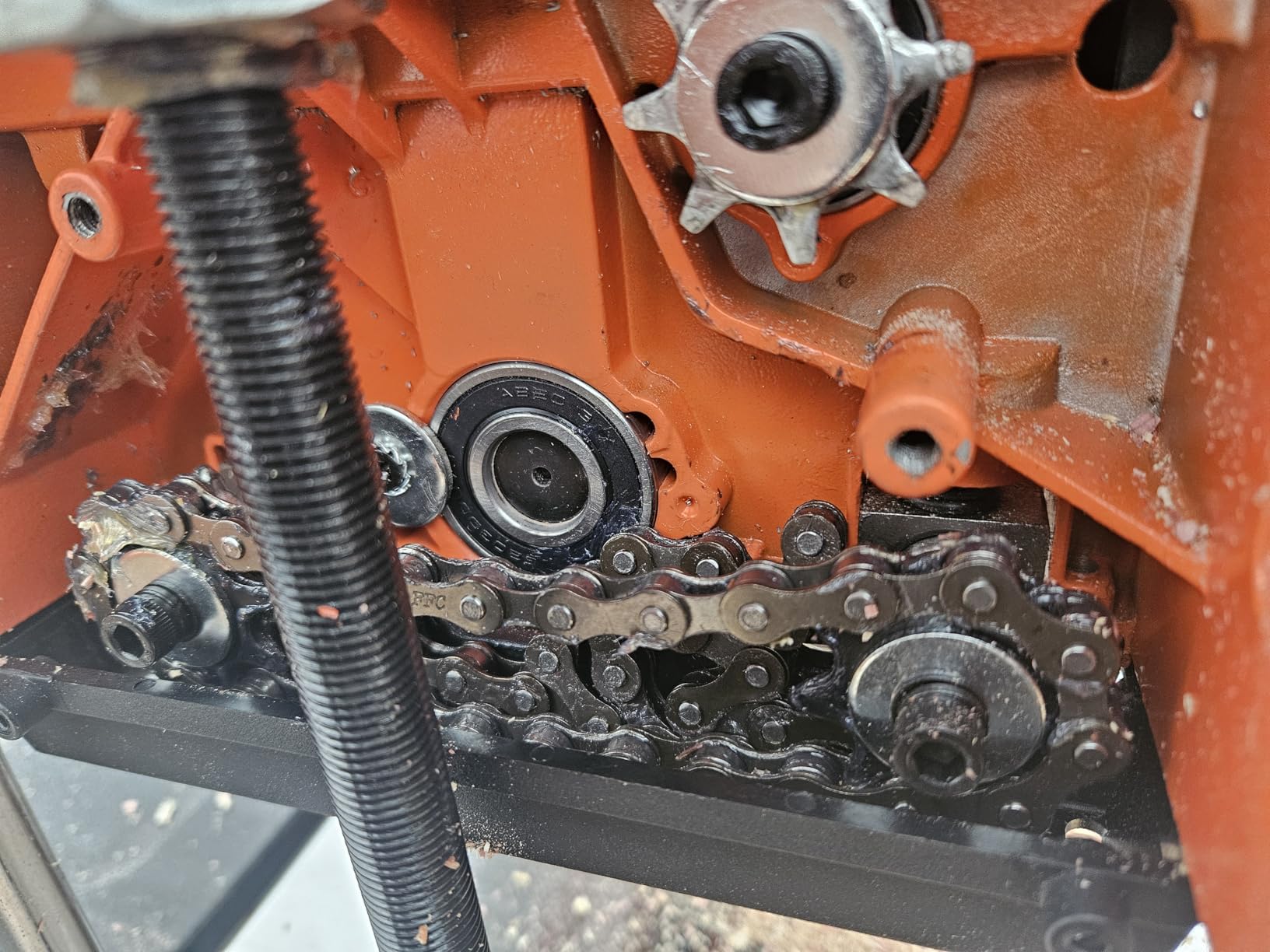

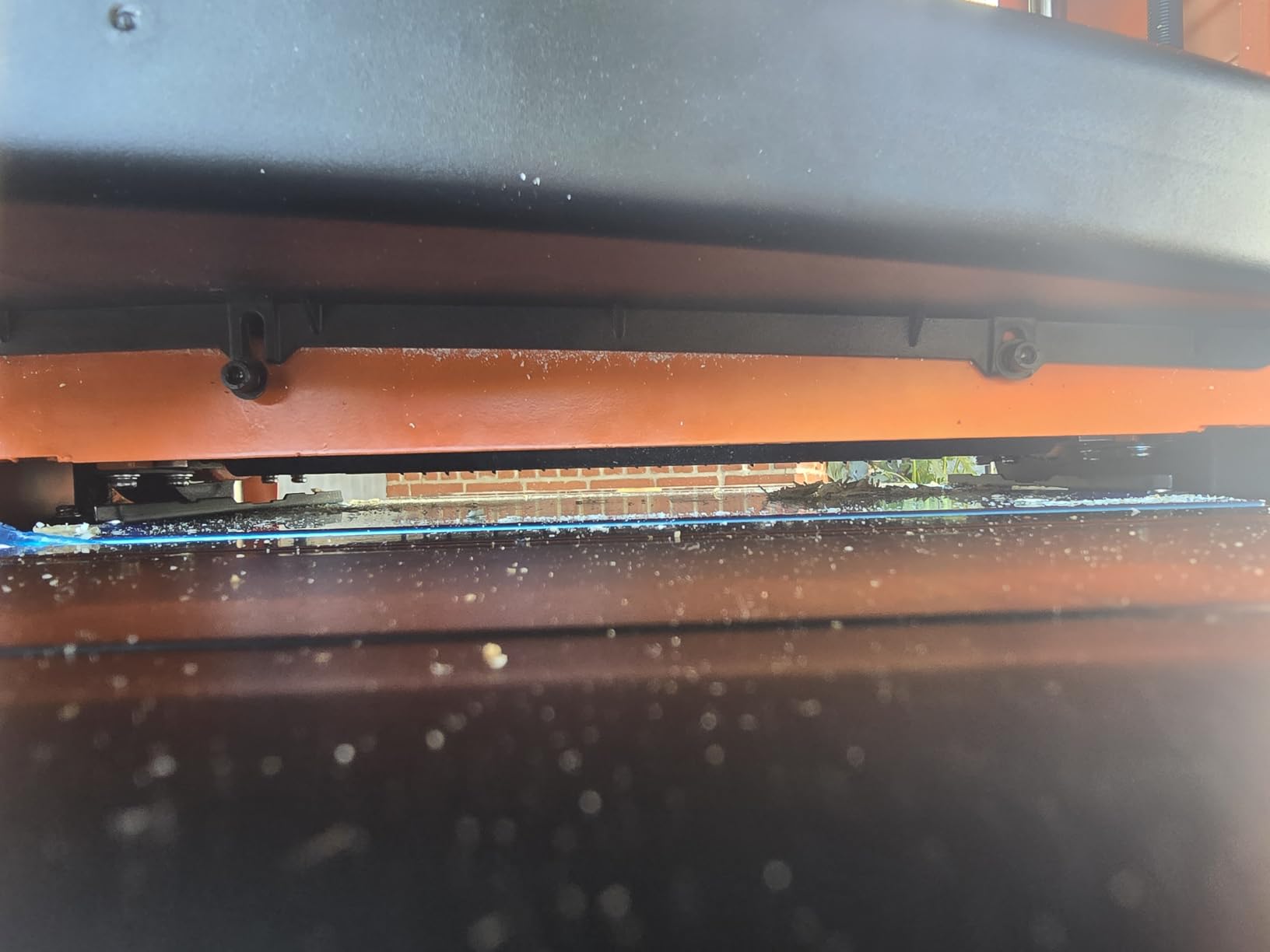

8. VEVOR 13-Inch Single-Speed Planer – All-Metal Build for Light Duty
VEVOR 13-Inch Thickness Planer, Three-Blade Power Benchtop Planer, with 2000W 23500 RPM Powerful Motor, Dual Rollers, Over Protection, for Hard Soft Wood Material
13 in width, 6 in height
24,000 cuts per minute
2000W motor, 62.8 lb
2 and 4 inch dust hose fit
Pros
- 2000W motor planes solid oak
- walnut
- and maple
- Simple depth adjustment that is easy to set
- Finish smooth enough to skip 100 grit sanding
- All-metal build and high weight feel solid
- Dual rollers keep boards tracking straight
- Works with 2 inch and 4 inch dust hoses
Cons
- Motor reported overheating during long board runs
- Drive chain failure reported within an hour
- Chip blow action clogs every few planks
- Snipe marks after repeated runs
- Replacement parts and support hard to source
This single-speed VEVOR is the metal-and-weight option. The 2000W motor planes solid oak, walnut, and maple, the all-metal construction and 62.8 lb frame feel solid on the bench, and the finish is reported smooth enough to skip 100-grit sanding. The dual-roller feeding system is designed to reduce vibration and alignment issues, and the 13-inch width with a 6-inch height handles long or warped boards on a 28.2 inch worktable.
Depth control is 1/8 inch precision with millimeter-level accuracy, and the machine accepts both 2-inch and 4-inch dust hoses, which is convenient when your collector hose is already on the bench. Set the depth adjustment, feed the board, and it does what it says.
At a 4.0 average across 53 ratings, this is the lowest-rated machine here, with 12 percent one-star reviews. The negatives cluster around reliability rather than capability: an overheating motor that cuts out during extended runs, a drive chain that failed within about an hour of use, and very poor access to replacement parts and support.
The pattern in the reviews is simple. On short runs the machine performs well and owners are happy. On a long session, something in the drive or the motor gives out, and then the owner has a heavy benchtop planer with no realistic repair path. That is a risk you accept at this price, not one you design around.
How the metal build changes the feel
The all-metal chassis and the 62.8 lb frame are the reason this machine does not creep across the bench during a heavy cut. Most owners who keep it like the build treat it as a shop fixture rather than a portable tool, and the dual-roller feed keeps a warped board tracking straight through the head instead of drifting toward one knife.
When this single-speed VEVOR makes sense
Buy it if you do short, occasional passes, if you mostly work with softwood and light hardwood, and if the all-metal frame and dual-roller feed are the features you want. Breaking down rough boards into usable material is within its comfort zone.
Skip it if you will be running long sessions through dense hardwood, because the overheating reports are specific to extended board runs. If you dislike snipe marks after repeated passes, note that they appear here too, and this head offers nothing to counteract them.
How to Choose a Thickness Planer Under 500
The right answer is a spiral cutterhead if you care about surface quality, a three-knife straight head if you care about capacity and durability, and motor amperage is the deciding factor for hardwood. Everything else is refinement. Here is the short version of what actually separates the machines in this tier.
Straight knife, spiral, or helical cutterhead
Straight knife heads chop. Two or three knives sit in a row, each taking a full-width slice, which produces an impact you can hear and a surface that shows a faint scallop where each knife passed. The DW734 proves this can be done well: three knives at 96 cuts per inch makes each cut small enough to disappear. The CMEW320 is the budget version of the same idea, and residual snipe at board ends is what owners report.
Spiral heads shear. Blades are staggered in a helix around the drum, so the cut enters gradually across the width. The WEN PL1326 runs 26 rotatable HSS blades, and the Cutech 40600H runs 26 two-sided tungsten carbide inserts in six rows.
The advantages are a quieter machine, almost no snipe, and a cutterhead that stays sharp. The cost is more inserts to buy and typically a heavier machine.
Helical is the same principle as spiral with more rows of finer inserts, cutting even more gently and running even quieter. In this price tier the spiral machines are the ones offered, and for most home shops the difference between 26 blades in three rows and in six rows is a refinement rather than a need.
Width capacity and why 12.5 versus 13 inches matters
The standard lumber width in North America is nominally 6 inches, so a 12-inch machine has room for a rough-sawn board that is out of square. A 12.25 inch capacity handles most 1x stock cleanly. A 12.5 inch machine handles 1×6 and gives a little slack. A 13 inch capacity adds real margin for warped or wide rough boards, which is why two machines here and the majority of competitors use 13 inches.
Buy for the worst board, not the average board. If you work with 8/4 hardwood that arrives warped or overlarge, half an inch of extra width saves you from splitting the edge just to get under the cutterhead.
Motor power and hardwood capacity
Every machine in this list is 15 amp, which is the practical ceiling for a residential circuit at this size. The difference is what the motor does with it. A 20,000 rpm three-knife head with a slow feed like the DW734 is designed to take a deeper pass. A 23,500 rpm 2000W machine like the two-speed VEVOR moves air fast and pushes a lot of chips.
The practical rule for oak, walnut, and maple: take 1/32 inch per pass and go again. Save the full 1/8 inch setting for poplar, pine, and construction lumber. A 15 amp motor that stalls on a dense board leaves a torn surface and a long cool-down, and repeated stalling shortens motor life.
Feed rate and the two-speed gearbox
Feed rate in feet per minute determines how many cuts per inch land on the board. A slower feed with the same cutterhead speed means more cuts and a smoother finish. The PL1326 runs a single speed at 26 fpm. The two-speed VEVOR gives you 24 fpm for roughing and 15 fpm for finish work on figured stock, which is a genuine advantage no other pick here matches.
A two-speed machine is worth seeking out if you plane figured hardwood. A single-speed machine is fine if your material is straight-grained lumber, because you will take light passes anyway.
Dust collection, circuit, and bench support
Budget planers make real chip volume, and a 2-inch port clogs within minutes. Look for a port that accepts 4-inch hose, and pair it with a dedicated collector rather than a household shop vacuum, which fills fast and loses suction when full. The PL1326 port is reported as awkward regardless of hose size, so plan on catching what escapes.
Run the machine on a dedicated 20 amp circuit if you can. Owners report breaker trips when higher-amp machines run hardwoods on a 15 amp branch, and the two-speed VEVOR includes a 20A over-current protector that hints at the same expectation. Finally, bolt the machine to the bench where you can, using the four mounting holes the CMEW320 provides and most others replicate.
How to Set Up a Budget Planer Without Snipe or Tear-Out
Most snipe complaints are setup problems, not machine defects. Fix the tables, control the depth of cut, and manage the feed, and even a two-knife head will produce a surface you can finish straight from.
Five setup steps that kill most snipe
Level and lock the infeed and outfeed tables. Both tables should sit as close to flush with the bed as the adjustment allows. Run the four corner adjustment bolts until a straightedge on the bed and table reads level, then tighten them down.
Feed a sacrificial pine board five or six times. Cheap pine shows scallops immediately. Look at the first inch and the last inch of the board; any dip there is snipe.
Adjust one table at a time. If the end marks are deeper on the exit side, drop the outfeed by a fraction. If they are deeper on entry, drop the infeed. Never move both at once or you will lose your reference.
Set a depth of cut the machine will pull. Start at 1/32 inch and let the motor pull the board through under its own power. If you have to push, the feed rate is too fast for that cut, so lighten the cut or use a slower gear.
Plan a scrap lead-in for every session. A short piece of cheap pine run before your good board keeps the first cuts honest and warms the bearings.
Managing tear-out on figured grain
Tear-out is grain lifting ahead of the blade, and it is a direction problem, not a sharpness problem. Plane with the grain direction when the board allows it, which for a standard thickness planer means feeding the board in the direction that keeps the cutterhead travelling against the grain slope rather than with it.
Slower feed helps more than sharper blades on curly maple. That is exactly what the two-speed VEVOR gearbox is for, and on a single-speed machine the answer is a lighter cut and a lighter touch on the crank. Sharp carbide inserts also give a clean shear, which is why the Cutech holds up well on figured stock.
Face-jointing and end grain
A planer does not face-joint a board edge without a sled, and a sled is a simple shop-made or purchased board with a low-friction runner on the bottom and a fence on one side. The stock rides the fence, and the planer reference face is the flat, so both faces come out parallel. This is the standard trick for resawing rough-sawn lumber and for flattening a glued panel.
End grain is where planers are weakest. A cutting board with end grain edges will chip and tear unless you back the edge with a sacrificial scrap, feed very light passes, and sand afterward. Plan end grain at the very end of the board’s travel where the cutterhead is supported, and keep passes to 1/64 inch.
Frequently Asked Questions
What is the best thickness planer for the money?
In this price tier the DEWALT DW734 is the strongest all-round machine, holding a 4.7 average across more than 2,700 ratings with a three-knife head at 96 cuts per inch. If finish quality on hardwood matters more than capacity, the WEN PL1326 with its 26-blade spiral cutterhead is the better buy, and the CRAFTSMAN CMEW320 covers most shops for considerably less.
What is the best budget planer thicknesser?
The CRAFTSMAN CMEW320 is the budget answer most shops should start with. It has a 15 amp motor, a solid steel two-knife head running at 16,000 cuts per minute, reversible high carbon steel knives, and a base with four mounting holes so you can bolt it down. Owners report it holding accuracy over roughly 1,200 board feet.
What is the biggest advantage of a helical cutterhead?
The biggest advantage is that the blade enters the wood gradually instead of chopping across the full width at once. Staggered blades shear rather than impact, which means far less snipe marks at the ends of boards, less noise, and a surface that often needs no sanding. It also lets each blade rotate to a fresh edge, spreading wear across the whole cutterhead.
What does snipe mean and how do I fix it on a thickness planer?
Snipe is a shallow scalloped dip at the start and end of each cut, caused by the cutterhead dropping slightly as the board leaves the bed. Fix it by leveling both infeed and outfeed tables to the bed, then adjusting one table at a time while feeding a scrap pine board until the marks disappear. Spiral and helical heads largely eliminate the problem by design.
Are there planers under 500 suitable for hardwoods like oak or maple?
Yes, every machine in this list has a 15 amp motor and will handle oak, maple, and walnut if you respect the depth of cut. Take 1/32 inch per pass on dense hardwood and stay at that until the board is close to final thickness, since repeated stalling on a heavy cut can overheat the motor. A spiral cutterhead also reduces tear-out on figured maple.
Do I need to sand after planing with a budget planer?
Often not. A three-knife head at 96 cuts per inch or a 26-blade spiral cutterhead typically leaves a surface smooth enough to go straight to finish, and several owners of the spiral-head machines report skipping 100-grit sanding entirely. You will still want to sand end grain and any board with tear-out, and always sand through grits to a uniform surface before finishing.
What size planer do I need, 12.5 inch or 13 inch?
For standard 1x lumber, a 12.25 to 12.5 inch machine handles a nominal 6 inch board with room for out-of-square stock. A 13 inch capacity is the safer choice if you buy rough-sawn hardwood that arrives warped or oversize, since half an inch of extra width stops you splitting an edge just to fit under the cutterhead.
The Bottom Line
The best thickness planers under 500 do not include the machine most people assume they have to buy. If you want the deepest owner record and the best hardwood capacity in this tier, the DEWALT DW734 is the machine to own, with its three-knife head and four-column carriage lock doing the work. If you want the cleanest surface with the least tuning, the WEN PL1326 spiral head is the answer, and if you want the most capability for your money, the CRAFTSMAN CMEW320 covers most shops well.
Buy for your material and your patience. Spiral heads for figured hardwood, three-knife heads for capacity, and a two-speed feed if you want a real finish pass. Set the tables properly in the first hour and you will skip a step you may have expected. Updated for 2026, this list is the short version of what the sub-500 tier actually buys you.
